Front Roller System Tarps
Standard replacement tarps for all original OEM front roller system. Standard OEM tarps are typically 7′ wide. However, we will build tarps in any width per your specifications.
- Reinforced hem
- Rot / Weather resistant sewing thread
- Double lock stitched hems
- #4 spur grommets (Brass)
- 5 grommets front / rear
- Grommets 2′ apart on sides
Replacement Arm System Tarps
- Rectangular covers w/pocket at rear and 5 spur grommets at front
- First quality materials
- Reinforced hems
- Spur grommets 2′ apart on sides
- Other lengths and widths available

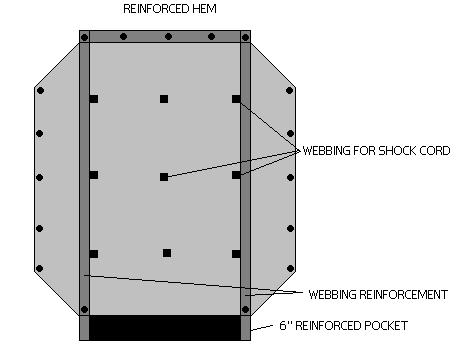

Heavy Duty Expandable Arm System Tarps
Standard heavy duty expandable replacement tarps for all Original Equipment Manufacturers (OEMs) Arm style systems.
- Webbing reinforced hem
- Rot / Weather resistant sewing thread
- Double lock stitched hems
- #4 spur grommets (brass)
- 5 grommets front / rear
- Grommets 2′ apart on sides
- Vinyl reinforced pocket
- Webbing reinforced – tarp length
- Shock cord enables expandablity
Performance Series Arm Systems Tarps
Our performance series tarps are designed and built to outlast competitor’s tarps by 3:1 – GUARANTEED!
- 4 strips 10,000 lb. webbing
- 22 oz. vinyl reinforced pocket
- Reinforced hems
- Web grommet tab at pocket prevent tear when using springs
Cable System Tarps
Features
- Double Reinforced Bow Pockets
- Double Stitched Bow Pockets
- Double Reinforced Over Side Rails
- Double Reinforced Tailflaps
- Double Reinforced Over Dog House
Required for Order
- Quantity of Bows (Please indicate if rear bow is power bow)
- Tarp Length from Front Beam to Front of Rear Pulleys
- Width (Cable to Cable)
- Arch height of bow
- Original System Manufacturer
Available In:
- Heavy duty vinyl coated mesh
- 18 oz. vinyl coated polyester (waterproof)
- 22 oz. vinyl coated polyester (waterproof)
- Black/Blue/Red/Grey/Yellow/Green
- Other colors available upon request
Installation available • Replacement parts available • Custom Applications Available
